Industry 4.0 and automation have transformed the fulfilment sector in recent years and we can’t expect that trend to change any time soon. Facilities that were once defined by static racking and manual forklift operations have evolved into highly automated, integrated environments. Today’s modern warehouse is a highly developed network of high-speed Automated Storage and Retrieval Systems (AS/RS), autonomous mobile robots (AMRs), and multi-level conveyor networks.
Maintaining worker safety whilst optimising high-throughput in a modern warehouse means a traditional approach to machine guarding has to evolve. To maintain operational flow while ensuring compliance with PUWER (Provision and Use of Work Equipment Regulations 1998), warehouse managers must move beyond basic compliance and adopt an engineering-led safety strategy.
The "Integrator" Trap: Managing Complex Assemblies

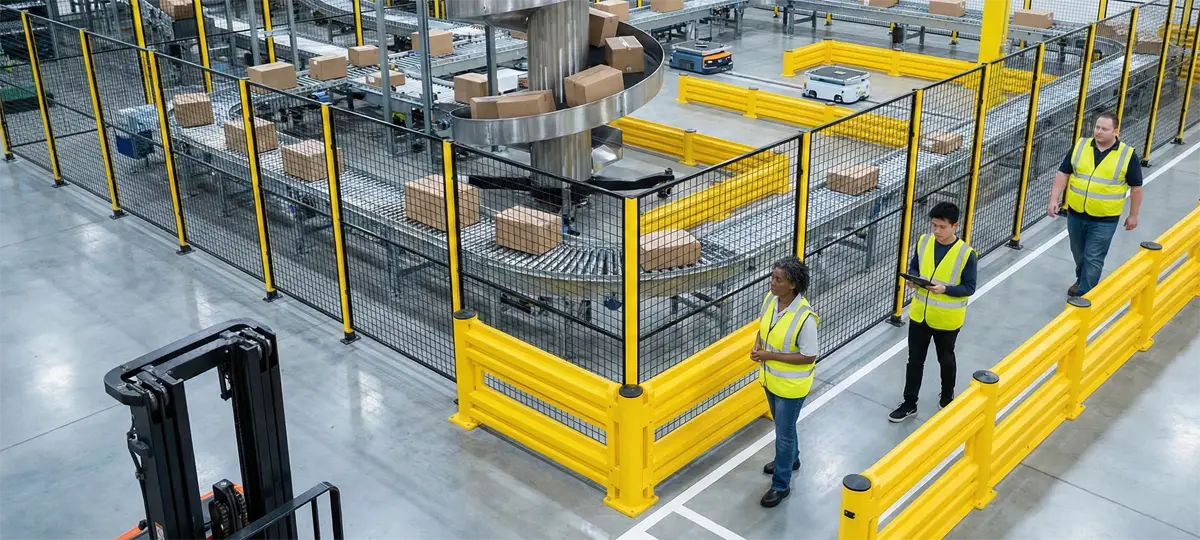

A frequent point of vulnerability in warehouse safety arises from the creation of what’s known as complex assemblies. Modern operations rarely rely on standalone machines. It’s not uncommon for example for a conveyor from one supplier, a spiral lift from another, and a pallet wrapper from a third to be integrated into a single system.
When these machines are linked to function as an integrated line, they form a new complex assembly under SMSR (Supply of Machinery (Safety) Regulations 2008). This signifies an important legal change:
- The operating company becomes the manufacturer: This integration in the eyes of the law means that the warehouse operator (or prime contractor) becomes the legal responsible “manufacturer” of the entire line.
- Interface hazards: The interface between machines – such as the shear point between a conveyor and a wrapper – is often where safety fails, as neither original manufacturer may have guarded that specific gap.
In this instance, the operating company as ‘manufacturer’ becomes legally responsible under SMSR and also as employer under PUWER.
Validation is essential: You require a new conformity assessment and technical file to demonstrate how these interface risks were mitigated. Given the complexities involved, therefore, it’s advisable to work with a safety system specialist.
It’s important to secure independent validation by means of an audit of the complete assembly against BS EN ISO 12100 for risk assessment and BS EN 60204-1 for electrical safety, to ensure that integrated systems are safe and compliant.

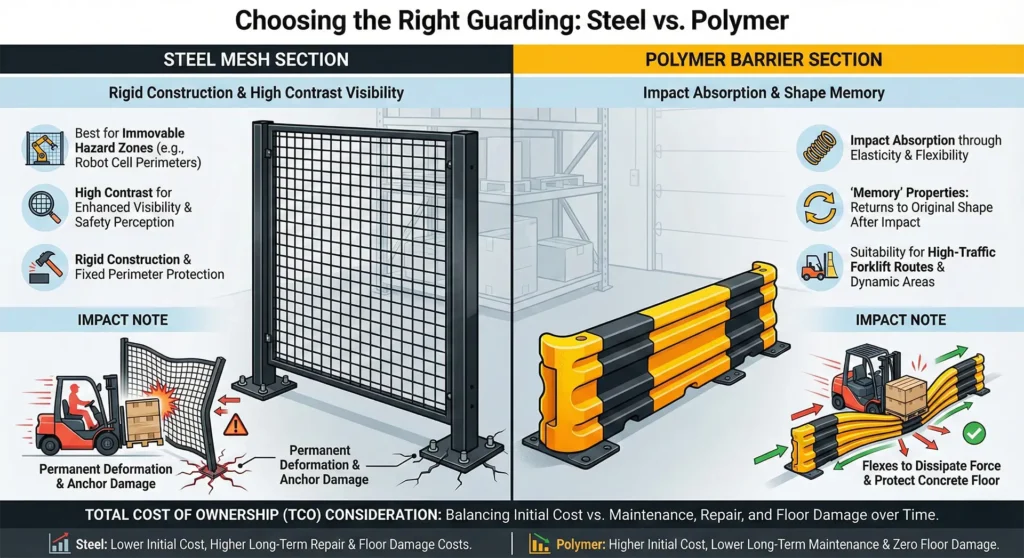

Material Selection: Steel vs. Polymer
Historically, steel mesh has been the default for machine guarding. However, the rise of advanced polymer barriers has introduced a genuinely viable if not preferable alternative, particularly for traffic management. When choosing between the two, it’s not just a question of aesthetics; it is a calculation of mechanical properties and total cost of ownership (TCO).
Steel Wire Mesh (The Rigid Standard)
Steel remains the standard for robot cell perimeters where a clearly defined, immovable hazard zone is required.
- Pros: It is rigid, provides excellent ventilation, and black mesh offers high contrast for observing working machinery.
- Cons: Steel deforms permanently upon impact. A forklift collision can destroy the panel and transmit the shock load into the floor anchors, often ripping them out and damaging the concrete slab.
Polymer Barriers (The Resilient Alternative)
Constructed from high-performance materials with “memory” properties, polymer barriers operate on the principle of elasticity.
- Pros: They absorb impact energy by flexing and returning to their shape. This dissipates force rather than transmitting it to the fixings, significantly reducing floor damage.
- Hygiene: Polymer is impervious to corrosion and easy to wipe down, making it ideal for food and pharma logistics.
When we work with customers, we specify the right material for the right zone, utilising rigid steel for tight robot clearances and resilient polymer for high-traffic forklift routes.
Addressing "Whole Body Access" and Lock-In Risks
A significant hazard in large-scale machinery, such as AS/RS aisles and robotic palletising cells, is “whole body access”. This occurs when an operator enters a guarded zone – perhaps to clear a jam or retrieve dropped stock – and the gate closes behind them. If the machine is reset and restarted while they are inside, there is a significant risk of serious injury.
Reliance on either or both administrative controls (signage or training) isn’t sufficient to mitigate this risk. We recommend robust engineering controls:
- Trapped key interlocking: This mechanical system forces a strict sequence. The operator must isolate power to release a key, which is then used to open the gate. The key serves as a “personal safety key” – if the operator takes it inside with them, the machine literally cannot be restarted.
- Escape release: Gates must always have a means of opening from the inside without tools, even if locked from the outside.
Smart Technology for Uninterrupted Flow
Safety does not have to come at the expense of compromising speed and productivity. Modern opto-electronic devices allow for safe human-machine interaction without rigid barriers.
- Safety light curtains with muting: These devices use “smart” muting algorithms to distinguish between a pallet and a person. This allows goods to flow freely in and out of a hazardous zone (like a wrapper) while instantly stopping the machine if a human body part is detected.
- Laser scanners for AMRs and AGVs: For autonomous mobile robots and guided vehicles, laser scanners create dynamic warning and protective fields that adjust based on the vehicle’s speed and direction.
Partnering for Acceptable Safety
Machine guarding in warehouse operations isn’t just a box-ticking exercise for PUWER or SMSR compliance; it is a fundamental component of operational resilience. Inadequate guarding leads to severe injuries, legal penalties, and costly downtime.
